Well Stipple My Grips Empty Well Stipple My Grips

Post by RubbaDubbaBubba Thu Mar 28, 2013 12:54 am

Howdy Boys,

I hate gloves, they're either too expensive, too small or too large, too stiff or not durable enough. I'm a
Cheap Bastard, well this is til I bought my Kriss, now I'm broke. LOL.....

Anyway, during cold weather my hands are not pliable, they give me problems. During the summer they're
sweaty and slippery and the texture of the Kriss grips are too smooth and does not provide me enough grip,
so I cured that. I stippled my grips, I think it looks good and for me it's functional. See what you think.


I'm posting my pics showing off my handi-work on Kriss, so here goes.

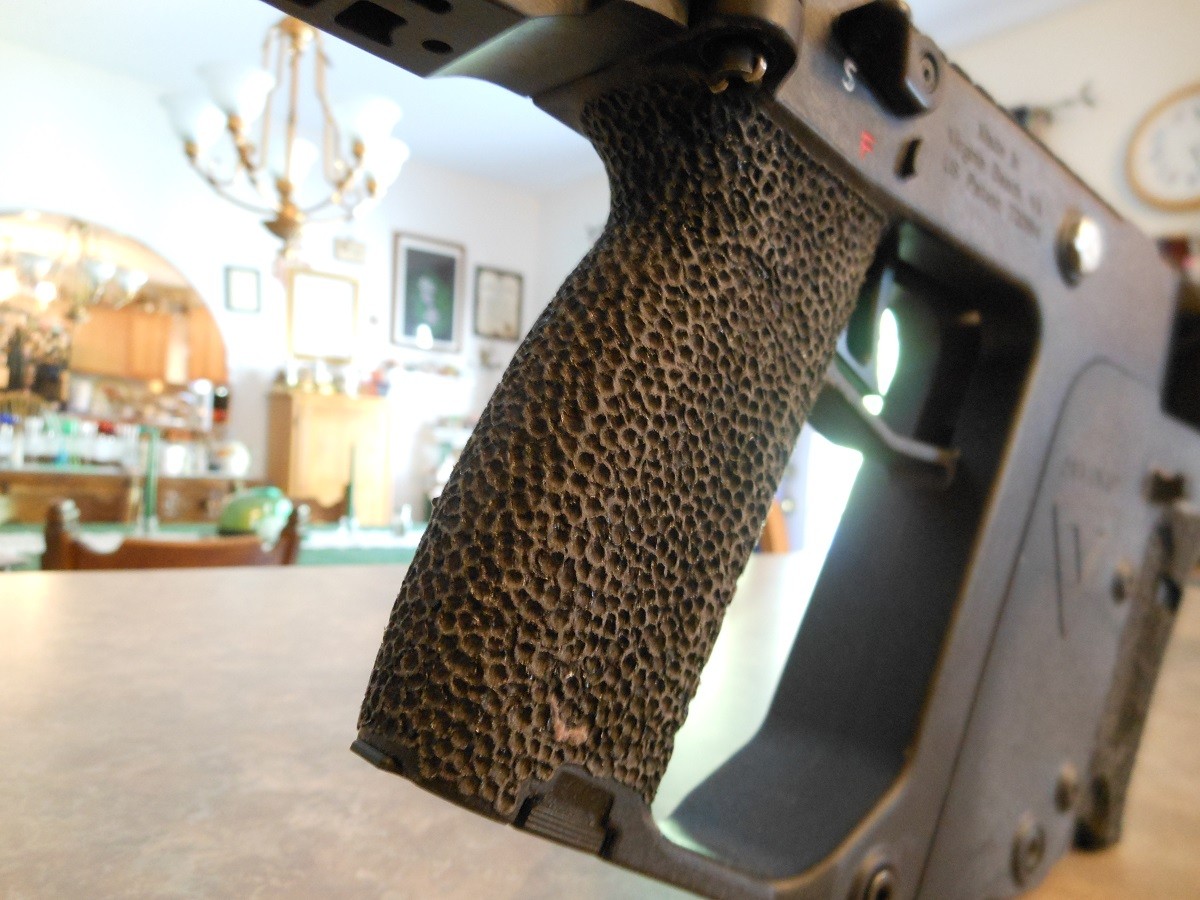

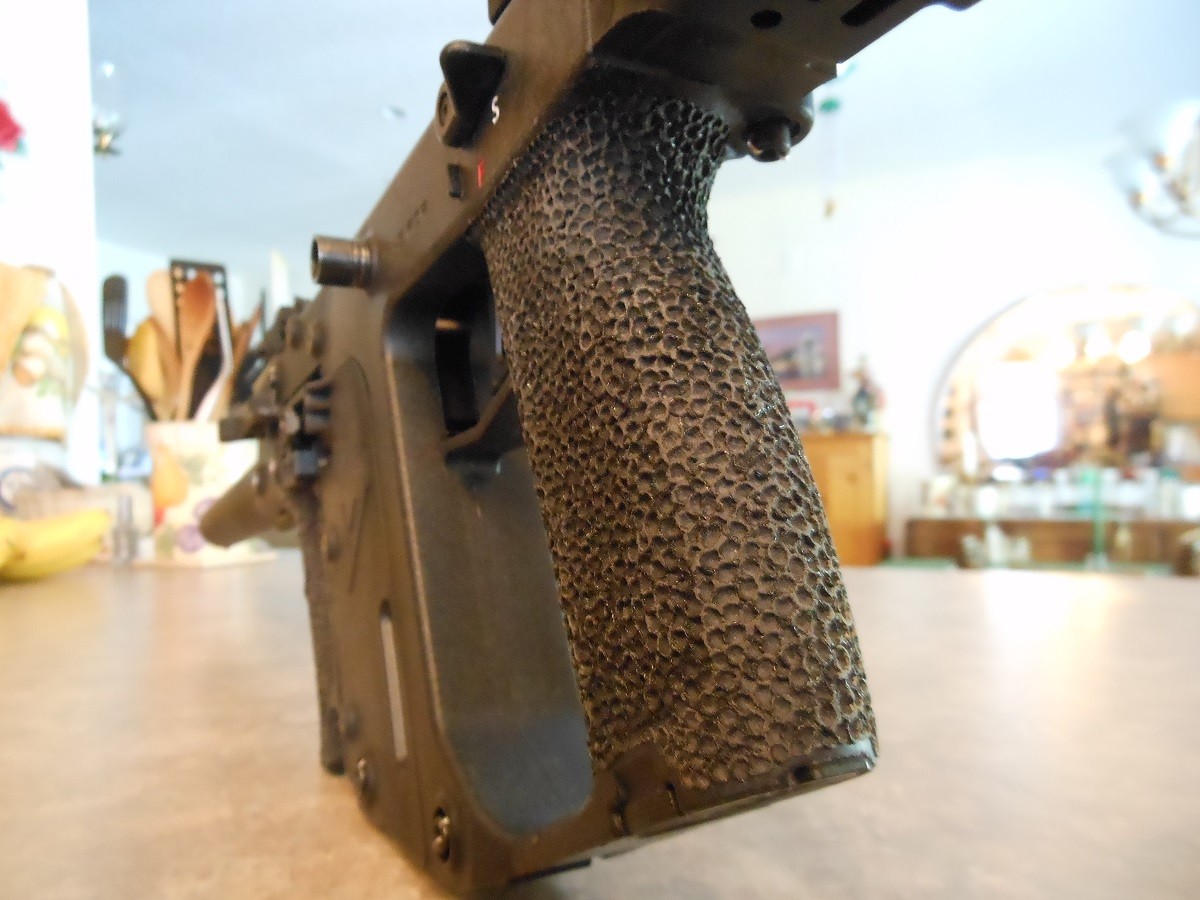

The Pistol Grip
Well Stipple My Grips 30110
Well Stipple My Grips 30210
Well Stipple My Grips 30310
Well Stipple My Grips 30410

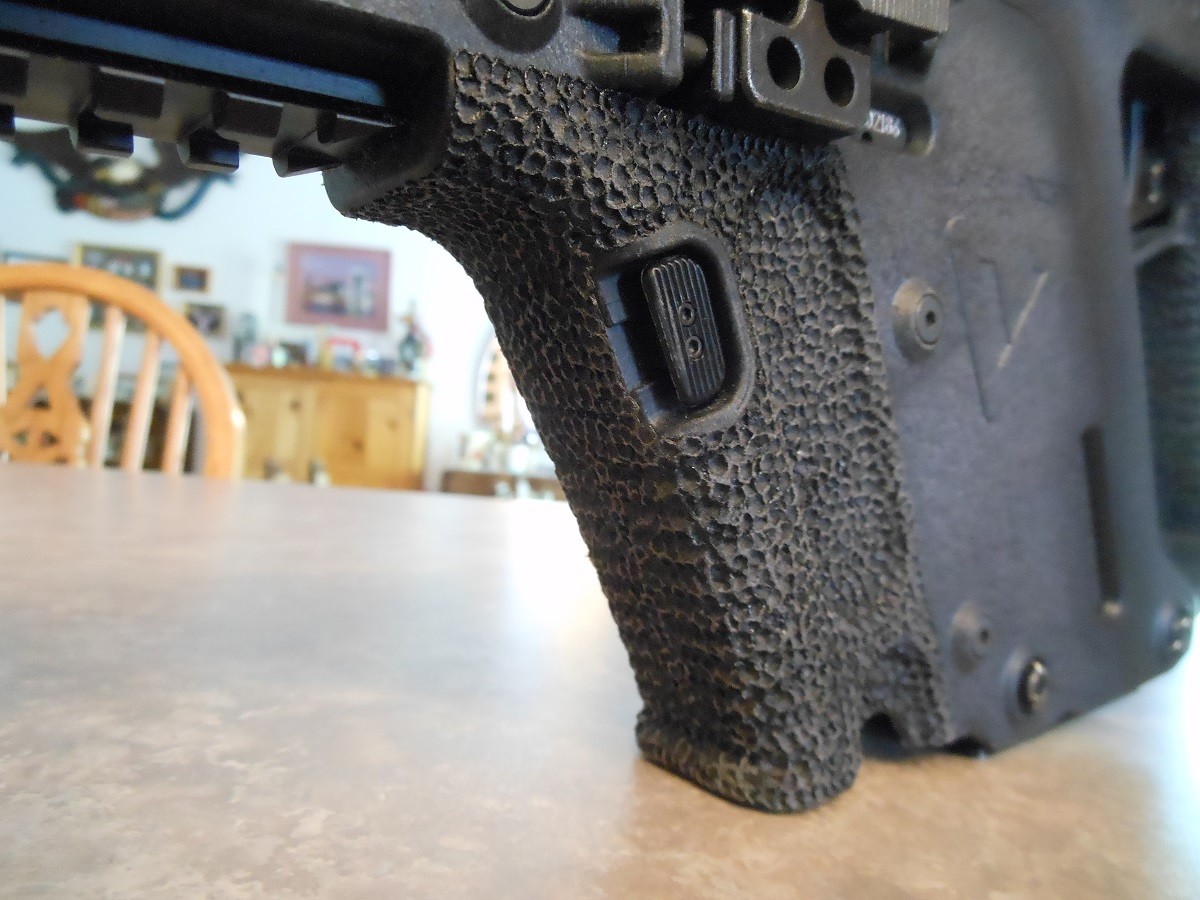

The Forward Grip
Well Stipple My Grips 30510
Well Stipple My Grips 30610

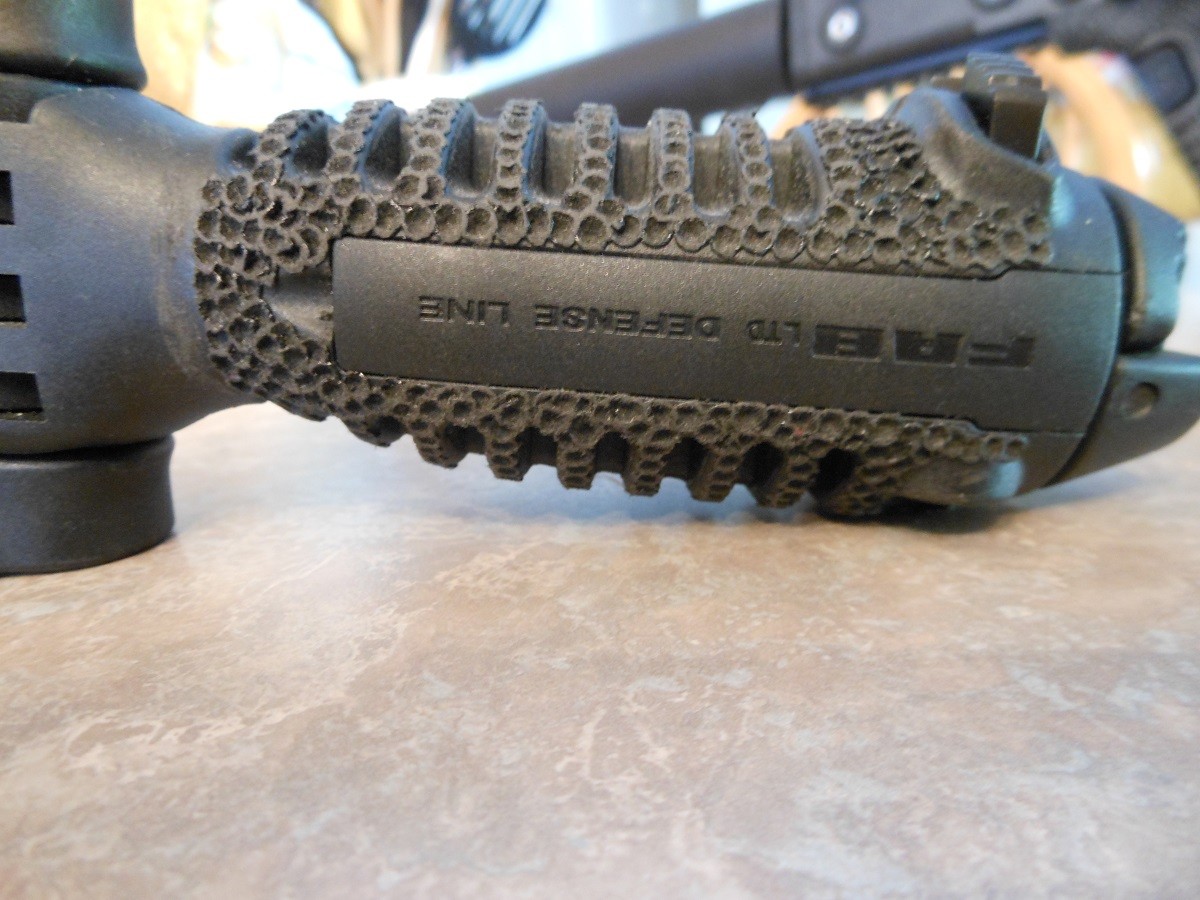

The Vertical Grip Bi-pod
Well Stipple My Grips 30710
Well Stipple My Grips 30810



The Overall View
Well Stipple My Grips 30910


Hope you enjoyed this.

If you like this, checkout my other post
- Another Brass Catcher
- New Gun Slinger in Town
- Another Shroudy Day
- Kriss Fire Control Group





Tools Required:
- A inexpensive low watt solder iron. Clip off the sharp point and use a file to round out the tip.
Well Stipple My Grips 20130315
- A open area and a fan to provide plenty of ventilation.
- A hand with a light touch, applying heat too long or too much pressure can ruin your project.
- Allocated lots of time for the project
- Sandpaper to smooth down the sharp edges produced when stippling the plastic.


BE WARNED:
1. Fumes and smoke put off when stippling the grips is pretty hard on the eyes and nose.
2. The smell of burnt plastic also lingers in a room for a long time.

Beginning The Job
Proceed by taking the solder iron and make light impressions into the plastic to the outer perimeter (The Red Lines) of the item you are stippling. Once you have made your boundary, proceed inward toward the center lightly tapping the plastic to produce the pattern (The Blue Dots) you want . You can make any pattern you wish, lines, circles, etc..
Once you've completed your work take the sandpaper and smooth down to your liking, I like mine a little rough. Finish texture is up to you.

Well Stipple My Grips 40110




Here are a few of my other stipple jobs:

My custom Ruger 10/22 with fayjen Legacy stock.
Well Stipple My Grips 50110
Well Stipple My Grips 50210
Well Stipple My Grips 50311
Well Stipple My Grips 50410
Well Stipple My Grips 50510
Well Stipple My Grips 50610
Well Stipple My Grips 50710




My Mossberg Persuader, I stipple the fore stock and grooved a spot to apply Velcro for my light pressure switch. I just replaced my shoulder stock with a SpecOps Gen II Adjustable Shotgun Stock to reduce recoil and have not had time to stipple it. May I do a video when I do and post it.

Well Stipple My Grips 60110
Well Stipple My Grips 60210


Last edited by RubbaDubbaBubba on Mon Apr 01, 2013 8:13 pm; edited 5 times in total (Reason for editing : Updated entries)

RubbaDubbaBubba

Posts : 9
Join date : 2013-03-15
Age : 32

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by TwigPig Thu Mar 28, 2013 1:40 am

Nicely done Sir! Very Happy
TwigPig
TwigPig

Posts : 25
Join date : 2013-03-10
Location : NorCal

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by CatMostFeared Thu Mar 28, 2013 2:11 am

I think
t think
I think you may have started something
CatMostFeared
CatMostFeared
Admin

Posts : 799
Join date : 2012-01-05
Age : 53
Location : Kentucky

http://www.krisstalk.com

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by buddybaja Thu Mar 28, 2013 3:27 am

How is this done???

buddybaja

Posts : 101
Join date : 2013-02-26

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by TheStalker Thu Mar 28, 2013 8:36 am

Awesome job man! 10

Welcome to the site welcome2

Chris
TheStalker
TheStalker

Posts : 72
Join date : 2012-12-01
Age : 47
Location : Jacksonville, NC - Dubai, UAE

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Solscud007 Thu Mar 28, 2013 9:40 am

Buddybaja, it is done with a soldering iron and a whole lot of time.


Good job on the stippling.

_________________
Most of the information I find and collect about the Kriss is documented on my facebook page.
https://www.facebook.com/pages/Kriss-Super-V/157275704339968
Solscud007
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 41
Location : Pittsburgh, PA

https://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by buddybaja Thu Mar 28, 2013 11:32 am

Looks awesome. But I don't hsve the stones to do this to the kriss. Haha. The "light touch" part is where I get lost. Lol

buddybaja

Posts : 101
Join date : 2013-02-26

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Kiptroloxe Thu Mar 28, 2013 11:42 am

Awesome job man. I dont really wear gloves while shooting either. I LOVE the consistancy of the stippling (really takes a steady hand). Looks like you have had some pratice with your other weapons. Your fastly becoming a integral part of this community! I cant wait to see your next mod beers
Kiptroloxe
Kiptroloxe

Posts : 81
Join date : 2013-01-03

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Kiptroloxe Thu Mar 28, 2013 12:48 pm

Interesting placement for the quick release sling mount! Haven't seen anyone put it there.
Kiptroloxe
Kiptroloxe

Posts : 81
Join date : 2013-01-03

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by afponiky Thu Mar 28, 2013 2:47 pm

Kiptroloxe wrote:Interesting placement for the quick release sling mount! Haven't seen anyone put it there.


I see it in one picture, then just a bolt head in two others?

Not sure which way it is at the moment.


AF
afponiky
afponiky

Posts : 72
Join date : 2012-12-29
Location : North Coast of Ohio

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Kiptroloxe Thu Mar 28, 2013 2:52 pm

I see the bolt head on the ejection side and the quick release sling mount on the charging handle side.
Kiptroloxe
Kiptroloxe

Posts : 81
Join date : 2013-01-03

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Kipp Tue Apr 02, 2013 5:11 pm

Nice stippling job!

_________________
FNH FS2000
Kriss V CRB
XDM9 CPT
XDS
Tavor FDE
Kipp
Kipp

Posts : 158
Join date : 2012-12-18
Location : Illinois

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by MadDogDan Tue Apr 09, 2013 8:02 am

Anyone have pics of "other patterns" that they have done? I would like to see different types of stippling before I do mine.........can't go back and change the pattern "after" it is done.

MadDog

MadDogDan

Posts : 175
Join date : 2013-03-20

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips

Post by Jedi380 Tue Apr 09, 2013 9:00 am

Maddog- do a Googly Search for "Glock stippling," there are a lot of threads out there on patterns and techniques. Smile

_________________
Never Laugh At A Sleeping Dragon.
Jedi380
Jedi380

Posts : 239
Join date : 2013-01-24
Location : Dayton, OH

Back to top Go down

Well Stipple My Grips Empty Re: Well Stipple My Grips
