Quick release fittings

Being cheap you usually find ways around costly items sometimes. Kriss has a quick release slingmount pin for $37.95
+ S/H, part number NTGPN-X002.
New Gun Slinger In Town 10010


Using the sling attachment at the folding stock pivot on my CBR is not good enough for me.
New Gun Slinger In Town 10113

My gun hangs down too far, so I move the sling point more to center of gravity using a quick
disconnect fitting. It still allows the gun to point down, but keeping it high enough off the
ground. The retail fittings are too expensive for me, and I go my merry little way and make
my own.

This is my answer for a quick disconnect, cost about $20.00 or less and can make two.



Parts
-------------
- Uncle Mike's Quick Detachable 100 Push Button Sling Swivels - B000MF7O2A (2 pack)
New Gun Slinger In Town 10212

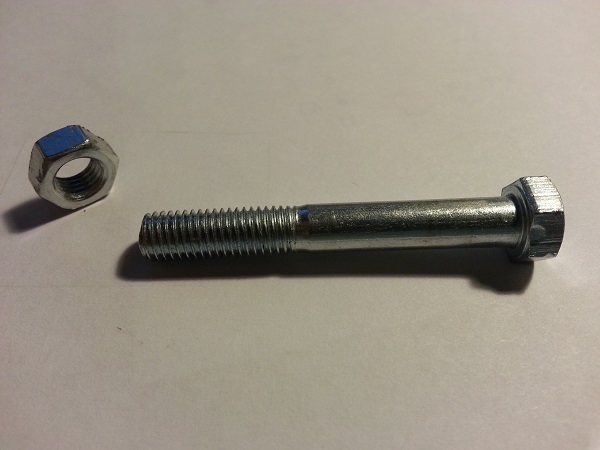

- Get m7x1.0 X 40mm long or longer hex head bolt and a m7 nut.
(Not a standard metric bolt, You'll find them in the specialty fittings area at local hardware store.)
New Gun Slinger In Town 10312

- Loctite Threadlocker Blue 242
New Gun Slinger In Town 10411


Tools
-------------
- Hacksaw
- Flat File
- (1) 6.1mm or 15/64" drill bit
- m7X1.0 tap and tap handle
- Hand drill
- Bench Vise

New Gun Slinger In Town 10513



To Begin-------------
1. Drill out bottom of quick disconnect cup with a 6.1mm or 15/64" drill bit. Use m7X1.0 tap to thread hole you just drilled.
* (To make it easier to drill use several small diameter bits one at a time to lead up to the final drilling. Taking too big of a
bite in the metal can be disasterous.)
New Gun Slinger In Town 10611

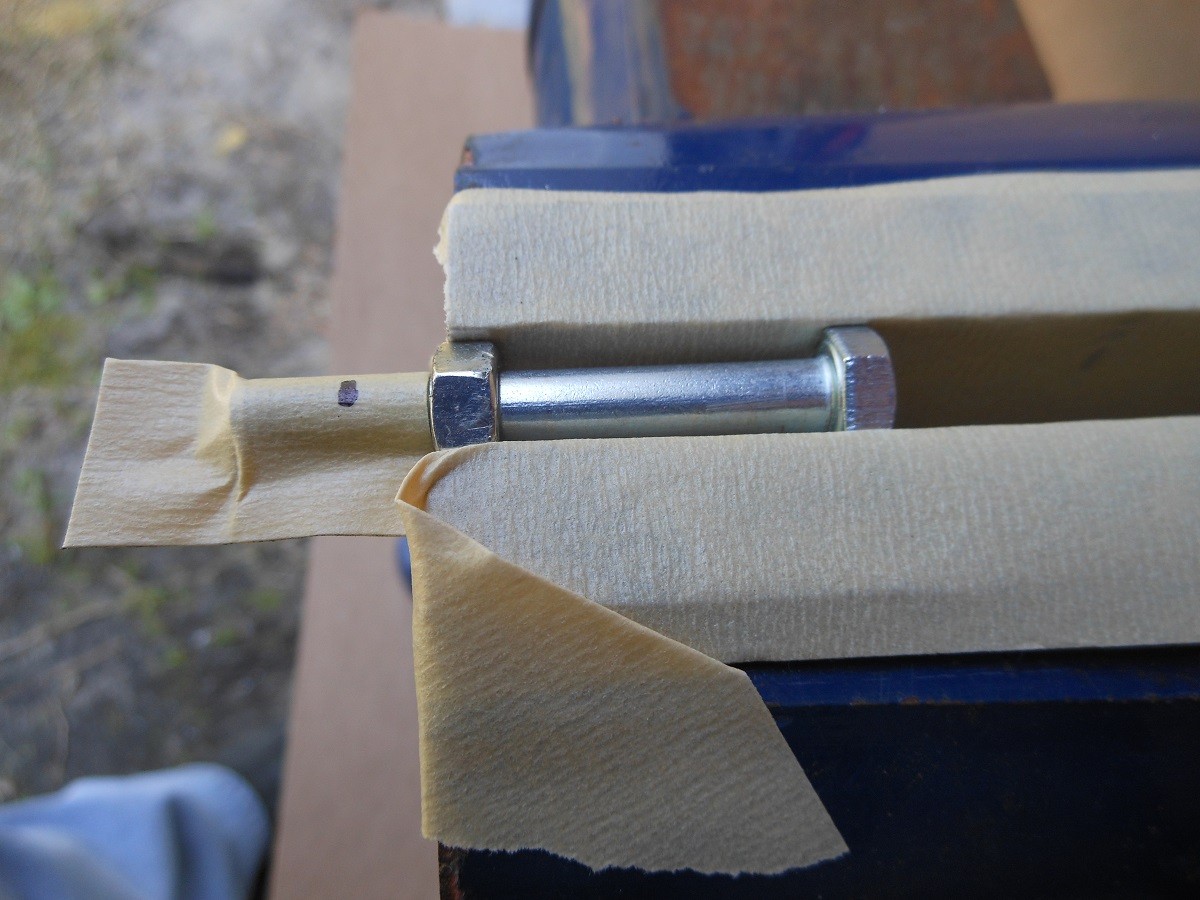

2. If bolt is too long put a m7 nut on it and apply a single wrap of masking tape. Measure to 40mm from shoulder of bolt
and mark on tape. Cut it too long and quick disconnect won't fit into cup or too short and you won't have enough
threads to secure it properly.
* (The nut helps stabilize the bolt in a vise when cutting and helps clean the threads when you remove it.)
* (The tape gives you a good visible mark where to cut the bolt.)
New Gun Slinger In Town 10711
New Gun Slinger In Town 10811


3. Cut bolt to length and use file to make a slight bevel to clean edges of the threads just cut and remove tape. Remove
nut to assist in straightening the threads.
New Gun Slinger In Town 10911
New Gun Slinger In Town 11012
New Gun Slinger In Town 11111

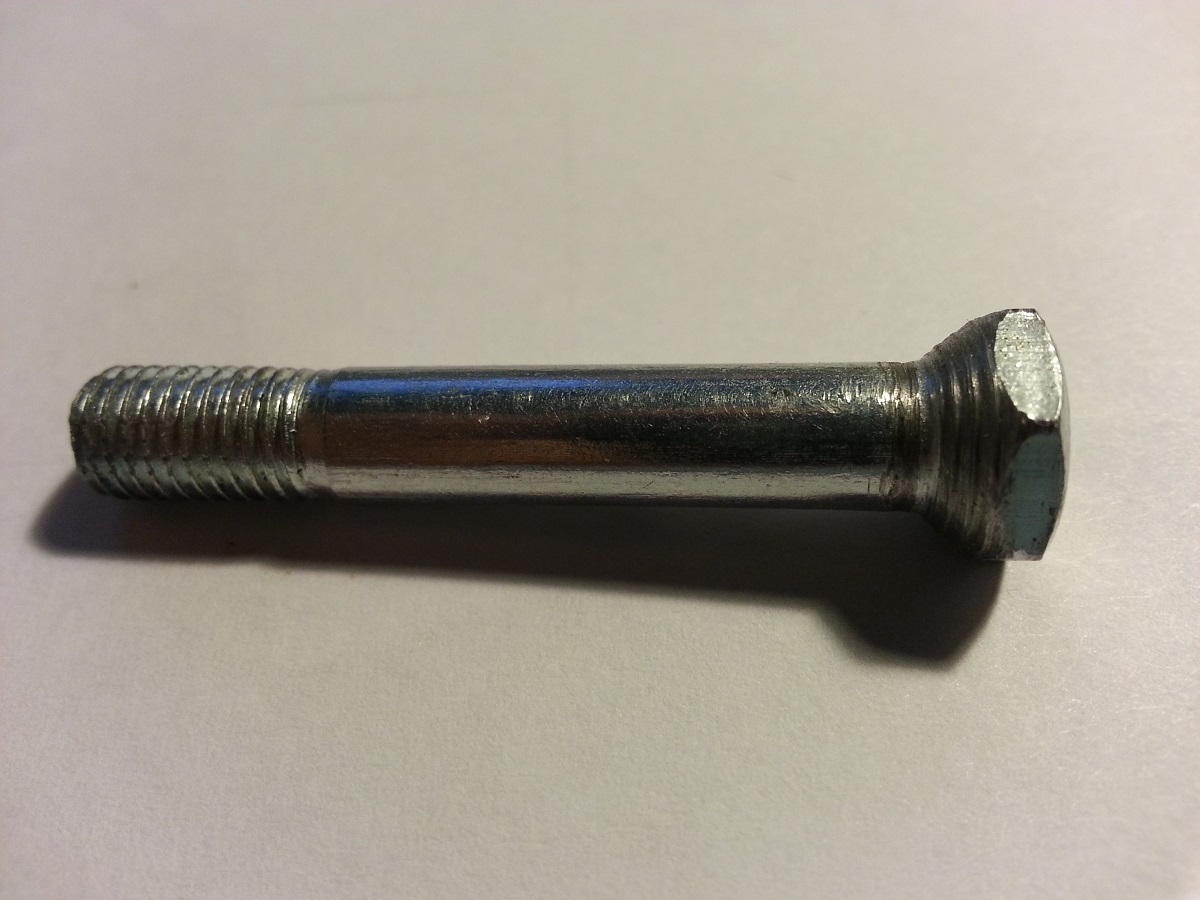

4. Now place bolt threads first into a drill chuck and tighten. Placing a file at a roughly 45 degree angle turn on drill and file
down the bottom edge of the shoulder of the m7 bolt as shown in the picture.
New Gun Slinger In Town 11210
New Gun Slinger In Town 11310
New Gun Slinger In Town 11410


5. Now remove the retainer pin shown and insert the bolt in the opposite side of where you desire to hang your gun from as
shown. Place a dap of locktite thread compound on threads of m7 bolt and thread the quick disconnect cup on to the bolt.
Hand tighten the cup to the gun body and let dry before use. Looking into the cup you should have about 1mm of the bolt
sticking into the cup. You do not need to use tools to tighten the cup, over tighten as you may effect the trigger mechanism
operation or possibly crack the body.
New Gun Slinger In Town 11510
New Gun Slinger In Town 11610
New Gun Slinger In Town 11710
New Gun Slinger In Town 11810
New Gun Slinger In Town 11910
New Gun Slinger In Town 12010
New Gun Slinger In Town 12110
New Gun Slinger In Town 12210


When loctite has cured attach your sling, adjust accordingly and enjoy.
Unfortunately, I cannot show you how it hangs because for some reason I seem to have lost my sling, damn.....

This is how it looks depending on the side you mount it.
New Gun Slinger In Town 12310
New Gun Slinger In Town 12410


Hope you enjoyed this post, checkout my others in the mods section:
- Well Stipple My Grips
- Another Brass Catcher
- Another Shroudy Day
- Kriss Fire Control Group


Last edited by RubbaDubbaBubba on Mon Apr 01, 2013 8:09 pm; edited 3 times in total (Reason for editing : Added text)
