Analysis of metal rail Empty Analysis of metal rail

Post by Solscud007 Mon Mar 18, 2013 9:41 am

For those unfamiliar with airsoft, often times manufacturers use a low grade metal to cast metal parts. When I swapped my KWA Vector side and bottom rail to the real rails from my real Vector. I noticed that the airsoft rails were heavier than the aluminum used on the real one.

I was mentioning this to my wife and she said "Too bad there isn't someone who could analyze metal for you". Haha my wife has a phd in Material Science Engineering and is an applications engineer for Edax. She works with scanning electron microscopes and analyzes materials I said machines.


So we took the bottom rail and put it in the microscope. Using EDS she can figure out what it is made up of.

Here is the result.

70% Molybdenum
15% Zinc
13% Nickel

Analysis of metal rail Image38


Image of the side rail. There is a coating and that is what you are looking at.
Analysis of metal rail Image39

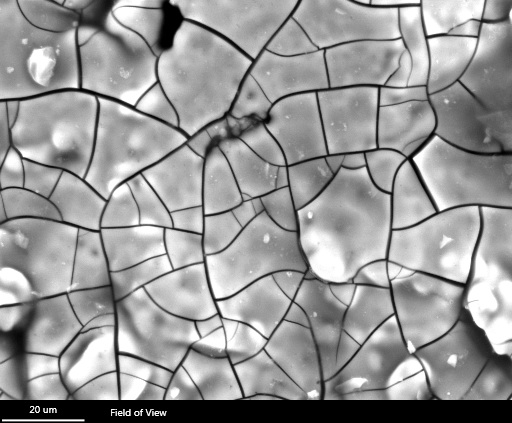

Even close look at the coating.
Analysis of metal rail Image40
Solscud007
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 44
Location : Pittsburgh, PA

https://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Analysis of metal rail Empty Re: Analysis of metal rail

Post by Brick Stone Tue Mar 19, 2013 11:25 am

Not to mention that the side rails are not milled to the same spec.

My KRISS rails have the center line recessed down the length if the rail and the OEM KWA rails do not. The OEM KWA rails have more material in their design as a whole. That is of course a factor in the weight as well.

Brick Stone

Posts : 26
Join date : 2012-08-20

Back to top Go down

Analysis of metal rail Empty Re: Analysis of metal rail

Post by Solscud007 Tue Mar 19, 2013 12:21 pm

I think they didn't want to bother machining the material out? But if you look at the kwa bottom rail, it is the same as a Kriss side rail minus the mounting holes.

Even with the center line removed, on the bottom rail, the material is just heavier compared to the Kriss rail.
Solscud007
Solscud007
MOD

Posts : 1580
Join date : 2012-01-05
Age : 44
Location : Pittsburgh, PA

https://www.facebook.com/pages/Kriss-Super-V/157275704339968?sk=w

Back to top Go down

Analysis of metal rail Empty Re: Analysis of metal rail

Post by jptech Wed Apr 12, 2017 1:16 am

I have a Jing Gong G36C airsoft AEG which after sitting for about 4 years, the selector switches literally crumbled when I tried them. Gearbox had siezed. Now, after another 5 years, the body has crumbled after trying to close the stock. Jing Gong used some very crappy pot metal in its construction.

On another note, what is the bottom rail length on your KWA?

jptech

Posts : 2
Join date : 2017-04-10

Back to top Go down
